39 FEET 6 TOWERS HEAVY DUTY SEMI TRUCKS,
|
| Selected Ad |
| Category: |
Automotive Services |
| Title: |
39 FEET 6 TOWERS HEAVY DUTY SEMI TRUCKS, |
| Ad
Number: |
27130 |
| Date Posted: |
7/15/2022 |
| Contact: |
Kamran Advani
kenosha , wisconsin, WI 53143
|
|
|
|
|
|
Description
$129,739.00
https://www.5startools.com/tools-1/39-feet-long-6-
towers-heavy-duty-semi-trucks
The 5STAR Frame Machine is a chassis is for heavy
duty vehicles of all types. It is widely considered
to be the most accurate and efficient system
available on the market today, with unlimited
possibilities of configuration and installation to
fit your shop’s needs.
Semi’s and large trucks require special equipment
to be able to handle the truck frame straightening
that is required to ensure the vehicle is fixed
properly. We at 5STARTOOLS takes the guess work out
with the use of a full size truck frame
straightening bench.

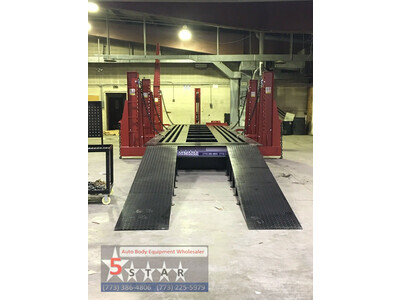

The 5STAR Truck Frame Straightening Machine is one
of the most powerful, heavy-duty frame
straightening machines available and it is
specially designed to repair frames on medium and
heavy duty semi-trucks, school buses and box
trucks.
The 5STAR Truck Frame Repair Machine has 6
independent pivoting towers and portable rams that
allow for frame repairs by pulling at 360 degrees
at over 20 tons each of pulling power. This allows
the repair technicians to reverse collision forces
gently, utilizing low-equalized pressure, removing
the damage, and assuring a fast and accurate
repair.
The 5STAR frame machine is widely considered to be
the Cadillac of truck frame straightening machines
and is widely considered to be the most accurate
and efficient system on the market.
Technical Data:
1.Working Length 39'
2.Working Width 8.4'
3. Working Platform Height 600mm
4. Max. Loading Capacity 40,000 KG
5. Tower Height 2.26/4.2m
6. Tower Pulling Range 270°
7. Tower Pulling/pushing force 25T TO 50T
Features:
1. The platform is made of I-beam tube.
2. The hydraulic towers can be moved freely
alongside the platform and turn 270° as operating.
The hydraulic cylinders work vertically, resulting
in maximum force and most powerful effectiveness.
3. High quality chains and plate tools are used
flexibly and conveniently with long life.
The entire series of tools accessories enable to do
any misshape correction work.
4. Hydraulic system with good design has powerful
driving force, long life and low failure rate.
5. Major clamps fix the auto quickly, firmly and
accurately.
6. Applying parallel-connect synchronous hydraulic
cylinder with high synchronous precision;
the integral mechanical lock is processed one-time.
7. Without synchronous errors; the sharing beam
adopts high |
|
|
|
|
|
|
