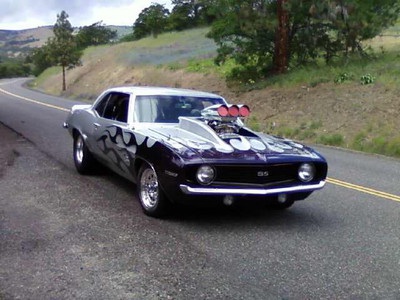

1969 Camaro Blown Big Block Race & Show

Selected Ad

Category:

Drag Racing

Title:

1969 Camaro Blown Big Block Race & Show

Ad Number:

25562

Date Posted:

6/17/2011

Contact:

Sean Kennedy
The Dalles, OR

Description
1969 Camaro
$31,999

Contact Information:
Sean Kennedy
541-980-1363
No Joy Rides - Only Serious Inquiry's

CLEAN TITLE

ENGINE
468 cid
Steel Crank
High Performance Rods with ARP bolts
Comp Cams Cam (have spec. sheet)
Solid Flat Tappet
Valve Adjustment Intake .028 Exhaust .030
Gross Valve Lift Intake .612 Exhaust .605
Duration @ .020 Tappet Lift Intake 290 Exhaust 304
Valve Timing @ .020 Open Int: 31 EXH:86
Close BTDC 79 BBDC 38
These specs are for CAM installed @ 114.0 Intake Center line
Duration @.050 Intake 256 Exhaust 267
Lobe Lift Intake .3620 Exhaust .3580
Lobe Separation 114.0
Comp Cam valve springs & retainers (have spec. sheet)
Chevrolet Bow Tie Aluminum Racing Heads: ported and flowed with ARP Studs
Roller Rockers (1.7)
Racing Heavy Wall chromoly pushrods
Pete Jackson Gear Drive
Holley Mega Blower (420 cfm)

CARBURETORS
Professionally rebuilt & tuned by Hot Rod Shop
www.hotrods.com � West Lynn, Oregon

Dual Holley 4150/Pro Form 850cfm Double Pumper Carburetors with Billet Aluminum Purple Anodized Metering Blocks and Billet Baseplate for Dual Holley 4-Barrel 850cfm
I have all carburetor casting numbers and jet sizes. Primary and Secondary blocked off.

TRANSMISSION
Hydromatic TurboTH400 3 speed trans.
Large harden steel sprag
Kevlar Band
Blue High Performance Clutches
Hipster full manual / reverse shift pattern valve body.
Hipster Transbrake
Coan �blower� converter - Marking stamped on the converter 3PRP1STB
B&M Pro Ratchet Shifter
B&M Supercooler
Summit Universal Line Lock
Energy Suspension Transmission Mount
Transmission Stamped � L34631, GM 74LG or 6, 32 50R
Transmission Casting � 8628577A

REAR END
Narrowed 9� Ford
Moser 35 spline axels
Moser Spool
4.56 Pro Gears
Nodular Center Section

BRAKES
Front � Willwood 4 piston disc brakes
Rear � Heavy duty drum brakes

EXHAUST
Hooker Competition Racing Headers / Ceramic Coated
Wrapped with Exhaust Thermal Tec 2�x50� 2)
Used Stainless Steel Snap Straps
3 �� full flow exhaust with X-Pipe

WHEELS & TIRES
Centerline �Warriors�
15 x 14 rears
Mickey Thompson Sportsman S/R 29x18.00R15LT
15 x 4 �� fronts
Neutral Widetrack SR P185/65R15

FLUIDS
Engine Oil � 0W-20 Valvoline Racing
Transmission � Royal Purple
Rear End � 80/90 Rear End Lube

FUSES
You will notice two fuse blocks.
One in the stock location on the drivers side firewall
It operates all the stock components of the car (lights, blinkers etc.)
The other one is on the passenger side firewall mounted on an alumin
