Brodix BB5 Aluminum Cylinder Heads Brand

Selected Ad

Category:

Aftermarket Parts

Title:

Brodix BB5 Aluminum Cylinder Heads Brand

Ad Number:

25400

Date Posted:

4/8/2011

Contact:

Leo Garcia
13353 NE 17 Ave
North Miami, FL 33181

Telephone:

1 888 314 4167

Website:

http://www.cobrapower.com

Description
These are the Sonny Leonard / Brodix BB-5 Heads. These heads have not been cnc'd.
Above Added: Mon January 3, 2011, 10:43 am EST

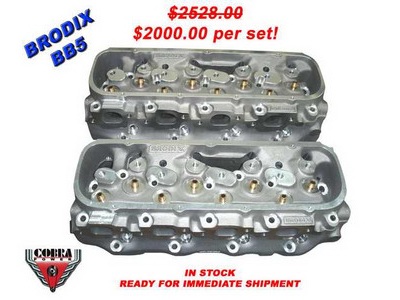

This is for a pair of Brodix BB5 Cylinder heads.
Overview:
The BRODIX -4 and -5 valve angles have been rolled 2� from stock to produce more torque and less chamber volume.
The -4 and -5 have a raised intake port design (approximately .400�) allowing the short-turn radius a better air flow angle without sacrificing velocity.
Our competitors offer a similar version of these heads, but they have larger intake ports in the stock location. The competitor�s low profile head slows down the air speed making the engine extremely lazy.
When Sonny Leonard designed the -5 cylinder head for larger cubic inch engines, he incorporated the most important things: correct port shape, volume, and velocity. If you want to take the next step up from a standard valve angle cylinder head, the BRODIX -4 or -5 is the ticket.
Specs:
Intake ports 387cc's
Chamber volume 119cc's
Valve sizes I/E 2.350 /1.900
Exhaust pattern Standard
Valve centerline Standard
Flow chart and other specs can be seen at http://brodix.com/heads/bb4.html

Dealer Phone Number: 305-893-5018 or Toll Free 1 (888) 314-4167
